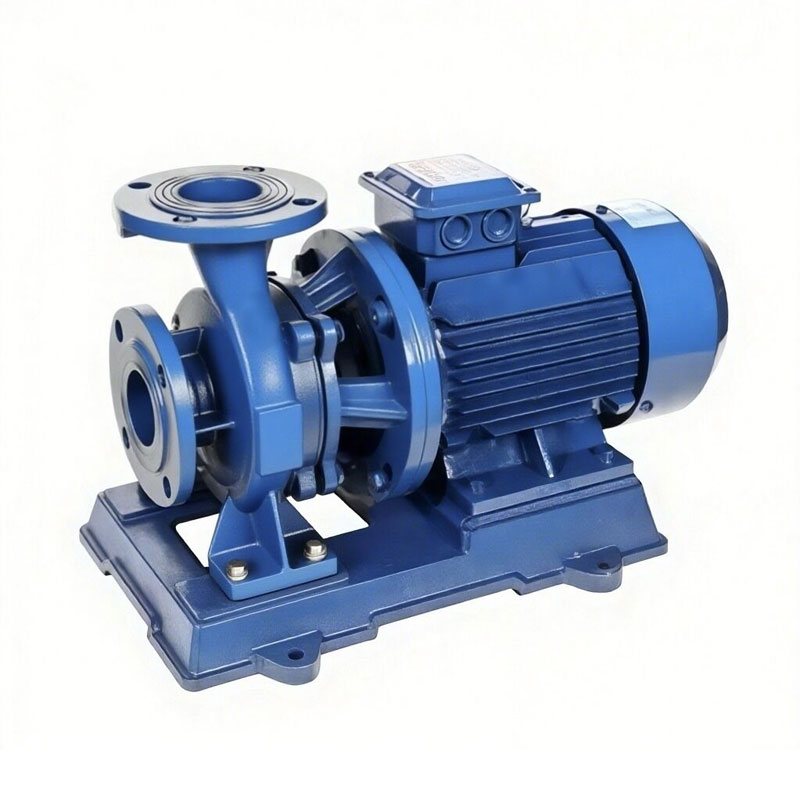

Pampu ya bomba la usawa la chuma

Shanghai Crown Bomba Viwanda Co, Ltd inazidi katika kubuni, kutengeneza, na kuuza pampu kadhaa za maji. Bomba letu la bomba la usawa la chuma hukutana na viwango vya ISO, kuhakikisha utendaji wa hali ya juu na kuegemea. Mfululizo huu hutoa uhandisi wenye nguvu, na kuifanya kuwa chaguo bora kwa suluhisho bora na za kuaminika za pampu za maji.

Tuma Uchunguzi

Maelezo ya bidhaa

Shanghai Crown Bomba Viwanda Co, Ltd inatoa pampu za maji zenye ubora wa juu. Bomba letu la Bomba la chuma la Cast Cast Cast ISW Series Centrifugal, iliyoundwa kwa kila viwango vya ISO2858 na JB/T53058-93, huokoa nishati na uhamishaji maji safi na vinywaji sawa, vinafaa kwa mahitaji anuwai ya usambazaji wa maji.

● ISW:Hadi 80ºC kwa matumizi ya viwandani/manispaa.
● IRW:Hadi 120ºC kwa maji ya moto.
● Kundi:Hadi 240ºC kwa matumizi ya hali ya juu.
● IHW:Kwa vinywaji vyenye kutu, -20ºC hadi 120ºC.

Trust taji pampu kwa suluhisho za pampu za maji za kuaminika.

Hali ya kazi

1. Shinikiza ya kuingiza ≤1.0MPa, au mfumo wa pampu shinikizo ya kazi ≤1.6MPa, shinikizo la kuingiza pampu + pampu kichwa1.6MPa, shinikizo la shinikizo la shinikizo: 2.5MPa. Shinikiza ya mfumo wa pampu ni kubwa kuliko 1.6MPa, utaelezea kwa utaratibu.
2. Joto la kawaida <40ºC, unyevu wa jamaa <95%.
3. Kiasi thabiti cha media hakizidi 0.1%, kipenyo cha chembe <0.2mm.

Uainishaji kuu

Mfano	Nguvu		Mtiririko	Kichwa	Saizi ya bomba
Mfano	kW	HP	m3/h	m	Inchi	mm
40-125	1.1	1.5	6.3	20	1.5	40
40-125a	0.75	1	5.6	16	1.5	40
40-160	2.2	3	6.3	32	1.5	40
40-160a	1.5	2	5.9	28	1.5	40
40-160b	1.1	1.5	5.5	24	1.5	40
40-200	4	5.5	6.3	50	1.5	40
40-200a	3	4	5.9	44	1.5	40
40-200b	2.2	3	3.7	38	1.5	40
40-250	7.5	10	6.3	80	1.5	40
40-250a	5.5	7.5	5.9	70	1.5	40
40-250b	4	5.5	5.5	60	1.5	40
40-125 (i)	1.5	2	12.5	20	1.5	40
40-125 (i) a	1.1	1.5	11	16	1.5	40
40-160 (i)	3	4	12.5	32	1.5	40
40-160 (i) a	2.2	3	11.7	28	1.5	40
40-200 (i) b	3	4	10.6	36	1.5	40
40-250 (i)	11	15	12.5	80	1.5	40
40-250 (i) a	7.5	10	11.6	70	1.5	40
50-100	1.1	1.5	12.5	12.5	2	50
50-125	1.5	2	12.5	20	2	50
50-125a	1.1	1.5	11	16	2	50
50-160	3	4	12.5	32	2	50
50-160a	2.2	3	11.7	28	2	50
50-160b	1.5	2	10.4	22	2	50
50-200	5.5	7.5	12.5	50	2	50
50-200A	4	5.5	11.7	44	2	50
50-200b	3	4	10.6	36	2	50
50-250	11	15	12.5	80	2	50
50-250A	7.5	10	11.6	70	2	50
50-100 (i)	1.5	2	25	12.5	2	50
50-100 (i) a	1.1	1.5	22.3	10	2	50
50-125 (i)	3	4	25	20	2	50
50-125 (i) a	2.2	3	22.3	16	2	50
50-160 (i)	4	5.5	25	32	2	50
50-160 (i) a	4	5.5	23.4	28	2	50
50-160 (i) b	3	4	21.6	24	2	50
50-200 (i)	7.5	10	25	50	2	50
50-200 (i) a	7.5	10	23.5	44	2	50
50-200 (i) b	5.5	7.5	21.8	38	2	50
50-250 (i)	15	20	25	80	2	50
50-250 (i) a	11	15	23.4	70	2	50
50-250 (i) b	11	15	21.6	60	2	50
50-315	30	40	25	125	2	50
65-100	1.5	2	25	12.5	2.5	65
65-100A	1.1	1.5	22.3	10	2.5	65
65-125	3	4	25	20	2.5	65
65-125a	2.2	3	22.3	16	2.5	65
65-160	4	5.5	25	32	2.5	65
65-160a	4	5.5	23.4	28	2.5	65
65-160b	3	4	21.6	24	2.5	65
65-200	7.5	10	25	50	2.5	65
65-200a	7.5	10	23.5	44	2.5	65
65-200b	5.5	7.5	21.8	38	2.5	65
65-250	15	20	25	80	2.5	65
65-250a	11	15	23.4	70	2.5	65
65-250b	11	15	21.6	60	2.5	65
65-315a	22	30	23.7	113	2.5	65
65-315b	18.5	25	22.5	101	2.5	65
65-100 (i)	3	4	50	12.5	2.5	65
65-100 (i) a	2.2	3	44.7	10	2.5	65
65-125 (i)	5.5	7.5	50	20	2.5	65
65-125 (i) a	4	5.5	45	16	2.5	65
65-160 (i)	7.5	10	50	32	2.5	65
65-160 (i) a	7.5	10	46.7	28	2.5	65
65-160(I)B	5.5	7.5	43.4	24	2.5	65
65-200 (i)	15	20	50	50	2.5	65
65-200 (i) a	11	15	47	44	2.5	65
65-200 (i) b	7.5	10	43.3	38	2.5	65
65-250 (i)	22	30	50	80	2.5	65
65-250 (i) a	18.5	25	46.7	70	2.5	65
65-250 (i) b	15	20	43.3	60	2.5	65
65-315 (i) a	30	40	56.5	110	2.5	65
80-100	3	4	50	12.5	3	80
80-100A	2.2	3	44.7	10	3	80
80-125	5.5	7.5	50	20	3	80
80-125a	4	5.5	45	16	3	80
80-160	7.5	10	50	32	3	80
80-160a	7.5	10	46.7	28	3	80
80-160b	5.5	7.5	43.4	24	3	80
80-200	15	20	50	50	3	80
80-200a	11	15	47	44	3	80
80-200b	7.5	10	43.3	38	3	80
80-250	22	30	50	80	3	80
80-250a	18.5	25	46.7	70	3	80
80-250b	15	20	43.3	60	3	80
80-315	37	50	50	125	3	80
80-315a	30	40	46.5	110	3	80
80-315b	30	40	44.5	100	3	80
80-350	55	75	50	150	3	80
80-350a	45	60	44.5	142	3	80
80-350b	37	50	41	135	3	80
80-100 (i)	5.5	7.5	100	12.5	3	80
80-100 (i) a	4	5.5	89	10	3	80
80-125 (i)	11	15	100	20	3	80
80-125 (i) a	7.5	10	89	16	3	80
80-160 (i)	15	20	100	32	3	80
80-160 (i) a	11	15	93.5	28	3	80
80-200 (i)	22	30	100	50	3	80
80-200 (i) a	18.5	25	93.5	44	3	80
80-200 (i) b	15	20	87	38	3	80
80-250 (i)	37	50	100	80	3	80
80-250 (i) a	30	40	93.5	70	3	80
80-250 (i) b	30	40	87	60	3	80
80-315 (i)	75	100	100	125	3	80
80-315 (i) a	55	75	95	113	3	80
100-100	5.5	7.5	100	12.5	4	100
100-100A	4	5.5	89	10	4	100
100-125	11	15	100	20	4	100
100-125a	7.5	10	89	16	4	100
100-160	15	20	100	32	4	100
100-160a	11	15	93.5	28	4	100
100-200	22	30	100	50	4	100
100-200A	18.5	25	93.5	44	4	100
100-200b	15	20	87	38	4	100
100-250	37	50	100	80	4	100
100-250A	30	40	93.5	70	4	100
100-250b	30	40	87	60	4	100
100-315	75	100	100	125	4	100
100-315a	55	75	95	113	4	100
100-315b	45	60	90	101	4	100
100-350	90	120	100	150	4	100
100-350a	75	100	88	142	4	100
100-350b	55	75	80	135	4	100
100-100 (i)	11	15	160	12.5	4	100
100-125 (i)	15	20	160	20	4	100
100-125 (i) a	11	15	140	17	4	100
100-160 (i)	22	30	160	32	4	100
100-160 (i) a	18.5	25	140	28	4	100
100-200 (i)	37	50	160	50	4	100
100-200 (i) a	30	40	140	45	4	100
100-200 (i) b	22	30	100	40	4	100
100-250 (i)	55	75	160	80	4	100
100-250 (i) a	45	60	140	72	4	100
100-250 (i) b	37	50	100	65	4	100
125-100	11	15	160	12.5	5	125
125-100A	7.5	10	143	10	5	125
125-125	15	20	160	20	5	125
125-125a	11	15	143	16	5	125
125-160a	18.5	25	150	28	5	125
125-160b	15	20	138	24	5	125
125-200	37	50	160	50	5	125
125-200a	30	40	150	44	5	125
125-200b	22	30	138	37.5	5	125
125-250	55	75	160	80	5	125
150-125	11	15	160	20	6	150
150-160	22	30	160	32	6	150
150-160a	18.5	25	150	28	6	150
150-160b	15	20	140	24	6	150
150-200	37	50	160	50	6	150
150-200A	30	40	150	44	6	150
150-250	75	100	160	80	6	150
150-250A	55	75	150	70	6	150
150-250b	45	60	138	60	6	150
150-350	110	150	160	150	6	150
150-350a	90	120	150	142	6	150
150-350b	75	100	140	135	6	150
150-250 (i)	75	100	200	80	6	150
150-250 (i) a	55	75	187	70	6	150
150-250 (i) b	45	60	173	60	6	150
150-315 (i)	110	150	200	125	6	150
150-315 (i) a	90	120	187	110	6	150
150-315 (i) b	75	100	173	95	6	150
125-200b	22	30	138	37.5	5	125
125-250a	45	60	150	70	5	125
125-250b	37	50	138	60	5	125
125-315	90	120	160	125	5	125
125-315a	75	100	150	110	5	125
125-315b	75	100	143	100	5	125
125-315c	55	75	134	88	5	125
150-125a	7.5	10	150	16	6	150
150-200-15	15	20	160	12.5	6	150
150-200A	11	15	147	10	6	150
150-250	75	100	160	80	6	150
150-250	18.5	25	160	20	6	150
150-250A	15	20	147	17	6	150
150-250b	11	15	134	14	6	150
150-315	30	40	160	32	6	150
150-315a	22	30	150	28	6	150
150-315b	18.5	25	138	24	6	150
150-400	45	60	160	50	6	150
150-400a	37	50	187	44	6	150
150-400b	30	40	174	38	6	150
150-315 (b)	75	100	173	95	6	150
200-200	15	20	200	12.5	8	200
200-200a	11	15	179	10	8	200
200-250	18.5	25	200	20	8	200
200-250a	15	20	184.4	17	8	200
200-250b	11	15	179	14	8	200
200-315	30	40	200	32	8	200
200-315a	22	30	187	28	8	200
200-315b	18.5	25	173	24	8	200
200-400	45	60	200	50	8	200
200-400a	37	50	187	44	8	200
200-400b	30	40	174	38	8	200
200-200 (i)	22	30	400	12.5	8	200
200-250 (i)	30	40	400	20	8	200
200-250 (i) a	22	30	358	16	8	200
200-315 (i)	55	75	400	32	8	200
200-315 (i) a	45	60	374	28	8	200
200-315 (i) b	37	50	346	24	8	200
200-400 (i)	75	100	400	50	8	200
200-400 (i) a	75	100	374	44	8	200
200-400 (i) b	55	75	346	38	8	200
200-400 (i) c	45	60	320	32	8	200
250-400	110	150	500	50	10	250

Kipengele na matumizi

● Muundo wa usawa inahakikisha muundo wa kompakt, unaohitaji nafasi ndogo ya ufungaji na kuwasilisha muonekano mwembamba.
● Ubunifu wa kuingiza na duka: bandari ya kuingiza ni ya usawa wakati bandari ya duka imewekwa wima juu zaidi, kurahisisha mpangilio wa bomba na usanikishaji.
● Bomba hufanya kazi kwa viwango vya juu, kutoa utulivu na kelele za chini.
● Imewekwa na muhuri wa mitambo iliyotengenezwa kutoka kwa vifaa vya sugu kama carbide ya silicon, kuhakikisha kuwa operesheni ya kuaminika, isiyo na uvujaji, na muhuri wa shimoni ya carbide iliyosafishwa.
● Ni rahisi kwa matengenezo. Sio lazima kuondoa bomba. Ondoa tu lishe ya kifuniko cha pampu na vifaa vya motor na maambukizi kwa matengenezo.

Bomba la bomba la chuma la cast cast ISW ISW wima ya wima ya centrifugal imeundwa kwa kusafirisha maji safi na vinywaji vingine na mali sawa ya mwili na kemikali. Inafaa kwa programu zifuatazo:

● Ugavi wa maji ya viwandani
● Usambazaji wa maji ya mijini na mifereji ya maji
● Shinikiza ya maji ya kuongezeka kwa kiwango cha juu
● Shinikizo la kupambana na moto
● Umwagiliaji wa bustani
● Mzunguko wa jokofu wa HVAC
● Bafuni moto na baridi ya mzunguko wa maji inaongeza
● Usafiri wa umbali mrefu
● Ujumuishaji wa vifaa
